Main characteristic
● Fire prevention and stop burnin
Measure through national authoritative organization, Meijia Boardis the A grade not-burning material, The wall and steel construction which are comprised by this materials, their Fire-resistant limit is far higher than the national standard to protect.
● Bear water and damp proof
Through being proved, Meijia Boardstill keeps intact after being soaked in water for one month, the phenomenon of swelling and out of shape will not happen. Out of shape rate in the condition of wet or dry is 0.26%, and absorb water rate is about 15%. Especially roll over intensity in the condition of dry is18Mpa, in the condition of picking up the moisture is 22Mpa, pick up the moisture intensity of state higher to resist.
● Sound insulation
95mm insulate against sound wall can up to four 12mm gypsum boards and 123mm wall ‘s sound insulation standard, equivalent to 150mm ordinary solid sound insulation result of brick wall.
● Keep warm and insulate heat
Meijia Board’s thermal resistance is 1.14m2.k/w; it has the function of fine heat insulation and keeping performance warm extremely.
● The light quality and high intensity
10mm thick panel weight have 10.07kg/m2, it is 31.5kg/m2after making the wall with the light steel fossil fragments and is about 1/10 to the ordinary solid clay brick wall, its assault intensity is 2-3 times to wall of ordinary gypsum board, it is convenient to install, and can shorten time limit for a project effectively.
● Green environmental protection
This material is formed for natural materials, such as the inorganic matter, plant fiber, etc., radioactivity is well below the National standard, environmental protection accord with national request, and it is new product encouraged by state policies
● The similar material characteristic comparing
Gypsum board |
Fiber cement board (the board of solicic acid calcium) |
Meijia Boards |
The thickness reaches above 12mm can reach the request of a grade and the material that is not fired. |
The thickness reaches above 6mm can reach the request of a grade and the material that is not fired. |
3MM thickness reaches to the request of firing prevention |
Its hydroscopic is heavy; it is apt to out of shape. |
Expansion of coefficient is About 8/10000; absorbing water rate of is slightly high (absorbing water rate is 35%) |
Able to bear the tide well, not out of shape, not against the tide. |
The board is taken as rigidity, it is unable to do the modeling crookedly. |
The board is taken
as rigidity, it is unable to do various types of
modeling crookedly. |
Can stick to, cut
down, nailing, gluing, paint, sawing, planning, and can
use the art designing to cut, it is extremely convenient
to construct. |
The processing two
times is Difficult, superficial laminating is not good,
decorated layer is unable to paste. |
General
construction way only being taken, difficult to be
constructed with two times and be covered on the
surface. |
The board body is
pliable and tough and flexible, can do various types of
modeling crookedly |
Weight is heavy, it
is strenuous to carry, and the damaged rate is high. |
Weight is relatively
heavy, it is strenuous to carry, and the damaged rate is
high. |
Can collocate
various types of panel, makeup skin or log skin engaged
in the processing two times. |
Intensity low, poor
to be able to bear Climate, afraid of being collided,
afraid of water, afraid of tide, and out of shape
seriously when being stained by water. |
Contain the
asbestos in most products. |
Light weight,
conveniently carry, low damaged rate, waterproof, damp
proof. |
Specification and use of the platform
Meijia platform is mainly used in the room, office building, hotel, hotels, market, hospital, airport, subway, gymnasium, library, museum, theater, factory building, computer laboratory, indoor natatorium are carried with hanging, and the welt, fire door and other wallboard: Outdoor bill-board; Base plate of various kinds of plaques; Wrap up outside the steel construction; Wrap up outside the ventilation shaft; Roof boarding; Electric wire and cable wraps up and applies etc.
● Comparison
Number |
Siae |
Weight |
Use |
|
(MM) |
(KG) |
吊顶 |
隔墙 |
外墙 |
内衬贴面 |
防火门 |
防火钢包 |
3306 |
1830*915*3 |
6 |
|
|
|
√ |
√ |
|
3037 |
2135*915*3 |
7 |
|
|
|
√ |
√ |
|
3048 |
2440*1220*3 |
10 |
|
|
|
√ |
√ |
|
4036 |
1830*915*4 |
7.5 |
|
|
|
√ |
√ |
|
4048 |
2440*1220*4 |
11 |
|
|
|
√ |
√ |
|
5048 |
2440*1220*5 |
16.5 |
√ |
√ |
√ |
√ |
√ |
|
6036 |
1830*915*6 |
11 |
√ |
√ |
√ |
√ |
√ |
√ |
6037 |
2135*915*6 |
13 |
√ |
√ |
√ |
√ |
|
√ |
6048 |
2440*1220*6 |
20 |
√ |
√ |
√ |
√ |
|
√ |
8036 |
1830*915*8 |
14.5 |
√ |
√ |
√ |
√ |
|
√ |
8048 |
2440*1220*8 |
25 |
√ |
√ |
√ |
√ |
|
√ |
9036 |
1830*915*9 |
16.5 |
√ |
√ |
√ |
√ |
|
√ |
9048 |
2440*1220*9 |
29 |
√ |
√ |
√ |
√ |
|
√ |
10048 |
2440*1220*10 |
32 |
√ |
√ |
√ |
√ |
|
√ |
12048 |
2440*1220*12 |
38.5 |
√ |
√ |
√ |
√ |
|
√ |
Application
This system is especially suitable for the office, the meeting room, the hotel, the factory building, the market, the hall, and the large-scale project. It conducts oneself with dignity lightly, the flexibility is strong, can increase the indoor luminance and beautiful, Reduce the reflect light, have good warm - keeping after increasing the rock cotton, insulates against heat, insulate against sound, suck sound function
● The method of install
1 Hang and carry and put the line, confirm the regular position of the boom, the center spacing of the boom is 1200mm.
2 By losing one and connecting the boom with main fossil fragments and fixing, and make the main fossil fragments keep competence.
3 Fix fossil fragments vertically on main fossil fragments with the pendant, Fossil fragments axle center spacing is 612mm.
4 According to needing installation to prop up the fossil fragments sideways, the center spacing of the fossil fragments sideways is 1224mm.
5 Use nail fixing stiffly on fossil fragments once by oneself, and do the seam well.
● Attention
Meijia Boardcooperate with light steel fossil fragments hang of system have two kinds like human-up and non-human-up. The non-human-up only consider own weight and light-duty lamps and lanterns, but not the others loading. The human-up one considers 80-100kg loading more. The above-mentioned matters, you can check it on the construction manual. If you have special demand, please contact to the technology service department of Meiji

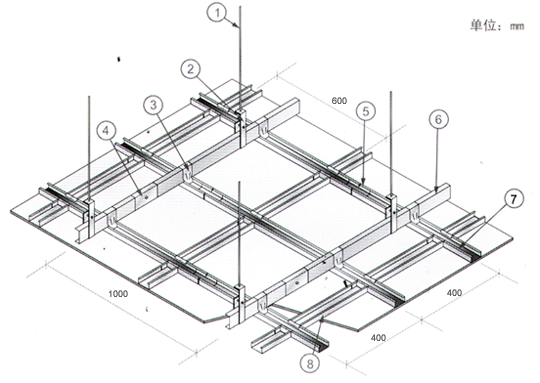

● Sketch map
1、吊杆 2、UC型龙骨吊 3、UC型龙骨挂件 4、C型龙骨连接件
5、U型龙骨连接件吊 6、主龙骨吊 7、次龙骨 吊 8、横撑龙骨
Application
● Install the method
(一)Skeleton of fossil fragments of light steel
1 left the sample and playing the line
2 By penetrating nailing or expanding screw and fixing the fossil fragments in the floor and garret
3 Arrange the vertical fossil fragments well according to the designing requirement (612mm), and Installation props up the fossil fragments sideways.
(二)The panel is regular in encapsulation
1Cut the panel into the necessary size first (More about than high 10mm of wall)
2The panel is fixed on fossil fragments with the screw by the way of cross sew. The interval of the screw is generally 200-250mm, and lower than 0.5mm on the board.
3 Notice the interval of the board is 4mm
4 Board comply regular from middle to all around, it could not work at the same time which is in order to avoid happening crookedly.
5 Before the panel is regular in encapsulation, you can put glass wool or the rock cotton within the fossil fragments in order to strengthen the sound insulation and fire prevention.

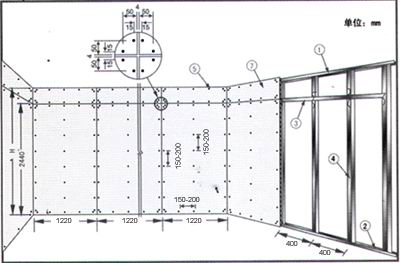

● Sketch map
|
>
|
1.沿顶龙骨 2.沿地龙骨 3.横撑龙骨 4.竖龙骨 5.自攻螺钉 6.膨胀螺丝E 7.玉龙平板 8.混凝土踢脚座(有防水要求时使用) |
 |
Explanation of platforms’ storage, carry and cut
Meijia platform, through proper construction, not only can get fine hanging carrying or partition wall quality, and can guarantee steadily it is sturdy and durable. And the storage and carrying of the products, need to pay attention to the following item, can ensure the products to keep the good state.
● Storage
1. Meijia Board is desiccated before being dispatched from the factory, should be put in room, and is prevented being drenched by the rain.
2. The waterproof oilskin or a set of nylon bag should cover each pile of board.
3. Meijia board should be left in the dry place to level, and prevented machinery or the artificial homework from touching the broken board corner.
4. Can't stand upright and put the Meijia board scattered.

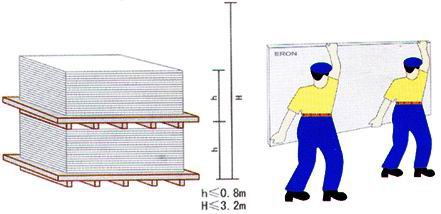

5. The largest height of each pile of board is 0.8m, if two piles or more than two piles are piled up, the whole height can't exceed 3.2m.
● Carry
You must carry Meijia Board carefully, in case that side, angle and area is damaged when you do some construction and Load and unload the truck, and prevent the panel from bending excessive at the same time. Need two workers to lift stiffly together, and forbid carrying singly.
● Cut
As cutting the plank and other construction material, we cut the Meijia Boardwith some Electric tool, it also produce the bits of the powder. So the attendant must wear the dustproof gauze mask. There should be good ventilation nature in the place of work. It must clean the bits of the power when clean the place.
